VFD Panel

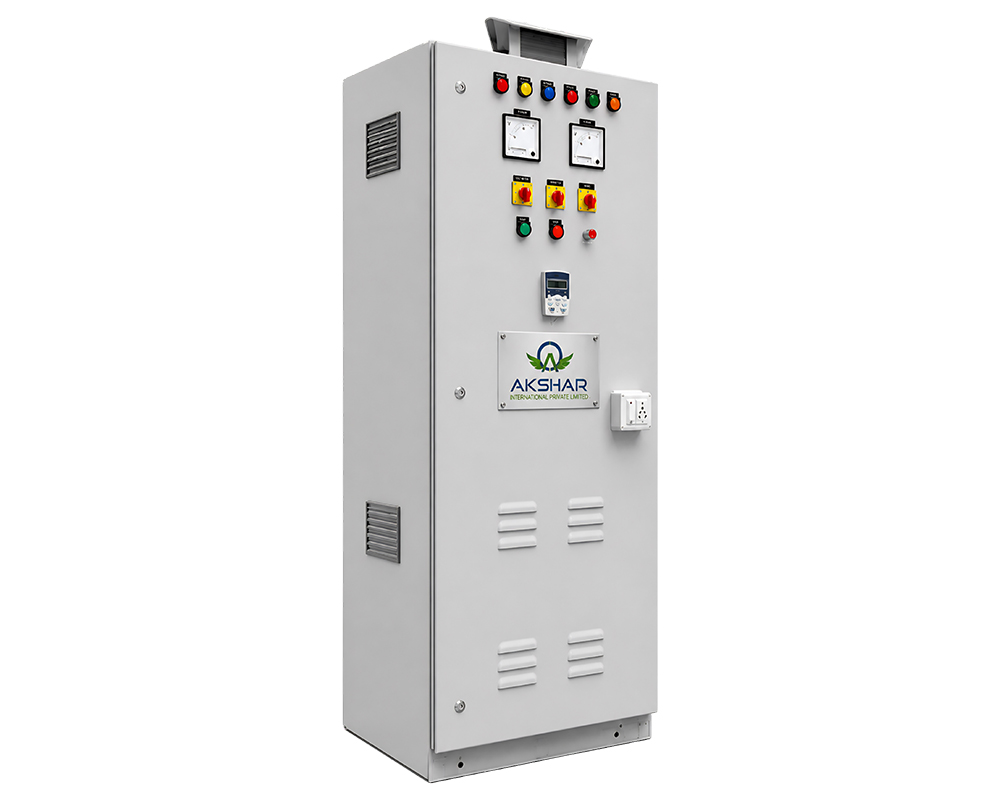

VFD Panel (Variable Frequency Drive Panel)

A VFD panel is used to control the speed and torque of electric motors by adjusting the frequency and voltage of the power supply. It allows smooth and precise motor operation, improving efficiency and reducing energy consumption.

The panel is designed with advanced control systems to provide stable performance and protect motors from sudden load changes. It also helps reduce mechanical stress and extends the life of equipment.

Application (Used for):
  • Controlling motor speed and operation
  • Reducing energy consumption
  • Minimizing mechanical wear and tear
  • Improving process control and efficiency
  • Ensuring smooth motor performance
Standard
What’s new Akshar’s Panel
Testing & Validation
Third-Party Inspection Support
Standard
  • IEC 61439-1 & 61439-2
  • IEC 61800 (VFD / Drives Standard)
  • IEC 60204-1
  • IEC 60529
What’s new Akshar’s Panel

The following engineering drawings will be provided for approval before production:

General Arrangement (GA) Drawing
Panel layout with dimensions, component positioning, and section details.

Power Wiring Diagram
Detailed schematic of power connections ensuring proper load distribution and safety.

Control Wiring Diagram
Logical wiring diagrams for control circuits, interlocks, and automation sequences.

Bill of Quantity (BOQ)
Comprehensive list of components, specifications, and quantities used in the panel.

Testing & Validation

The following tests will be conducted and provided before dispatch:

  • Insulation Resistance (IR) Test
  • Continuity Test
  • Functional Testing
  • Power Wiring Verification
  • Control Wiring Verification
  • Visual Inspection
  • Tightness / Torque Check
  • Earth Continuity Test
  • Noise & Vibration Analysis
Third-Party Inspection Support

We provide full support for inspections carried out by customer-appointed or independent third-party agencies to ensure compliance with all technical and quality requirements.
