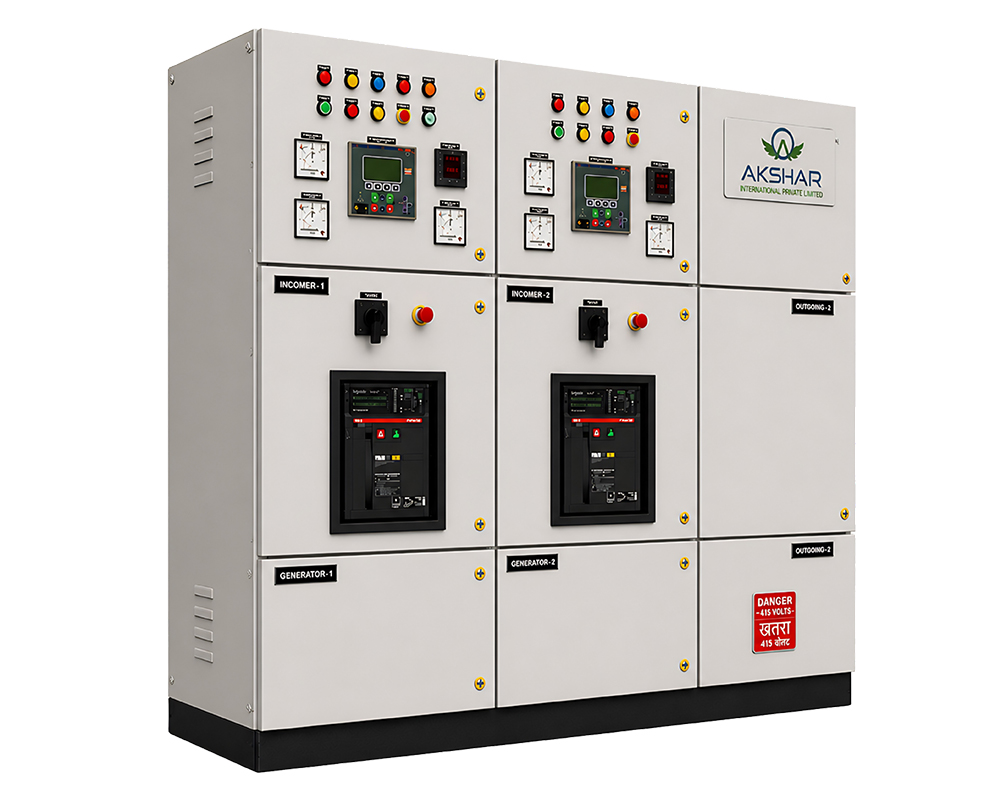

Synchronizing Panel

Synchronizing Panel

A synchronizing panel is used to safely connect two or more power sources, such as generators or utility supply, into one system. It ensures that voltage, frequency, and phase sequence are properly matched before connection to avoid damage and system disturbances.

The panel continuously monitors electrical parameters and allows smooth synchronization either manually or automatically. Once connected, it enables proper load sharing between sources, improves system reliability, and prevents sudden fluctuations during power transfer.

Application (Used for):
  • Synchronizing multiple generators
  • Sharing load between power sources
  • Ensuring smooth and safe power transfer
  • Preventing mismatch and system instability
  • Maintaining continuous power supply
Standard
What’s new Akshar’s Panel
Testing & Validation
Third-Party Inspection Support
Standard
  • IEC 61439-1 & 61439-2
  • IEC 60947
  • IEC 60255 (Protection Relays)
  • IEC 60529
What’s new Akshar’s Panel

The following engineering drawings will be provided for approval before production:

General Arrangement (GA) Drawing
Panel layout with dimensions, component positioning, and section details.

Power Wiring Diagram
Detailed schematic of power connections ensuring proper load distribution and safety.

Control Wiring Diagram
Logical wiring diagrams for control circuits, interlocks, and automation sequences.

Bill of Quantity (BOQ)
Comprehensive list of components, specifications, and quantities used in the panel.

Testing & Validation

The following tests will be conducted and provided before dispatch:

  • Insulation Resistance (IR) Test
  • Continuity Test
  • Functional Testing
  • Power Wiring Verification
  • Control Wiring Verification
  • Visual Inspection
  • Tightness / Torque Check
  • Earth Continuity Test
  • Noise & Vibration Analysis
Third-Party Inspection Support

We provide full support for inspections carried out by customer-appointed or independent third-party agencies to ensure compliance with all technical and quality requirements.
